ID: 753
Description

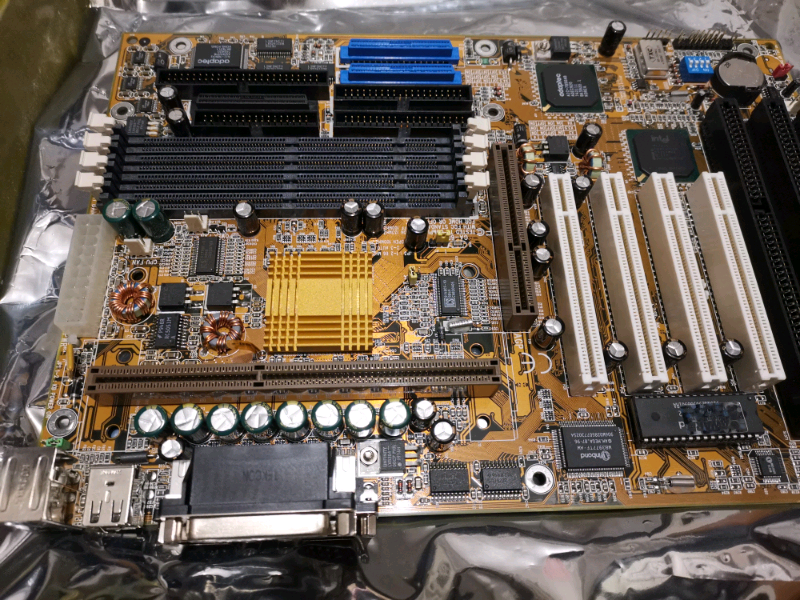

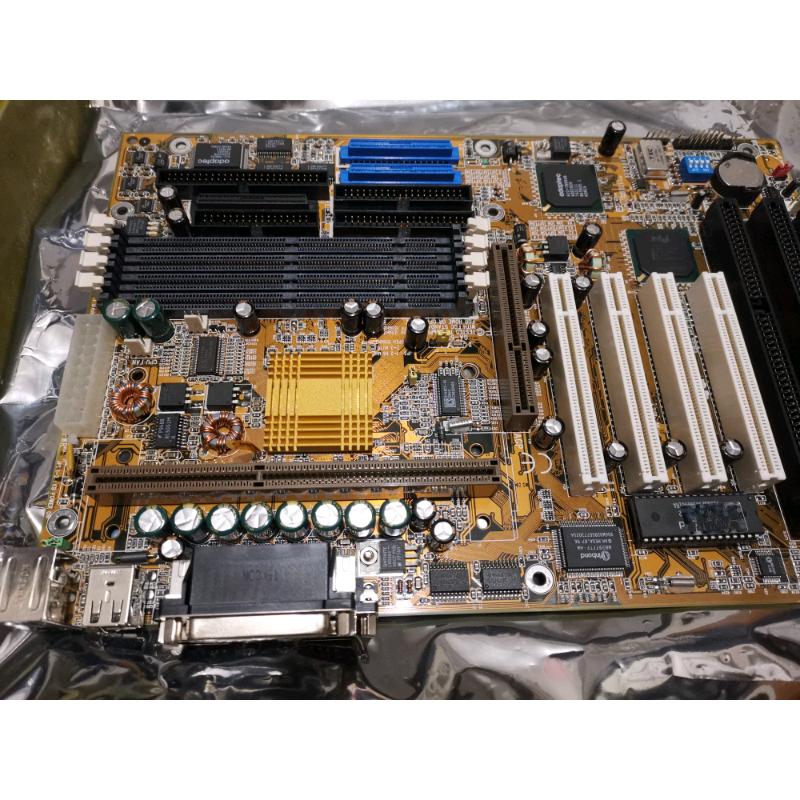

Gigabyte GA-6BXU
Beautiful Example
Great condition for age

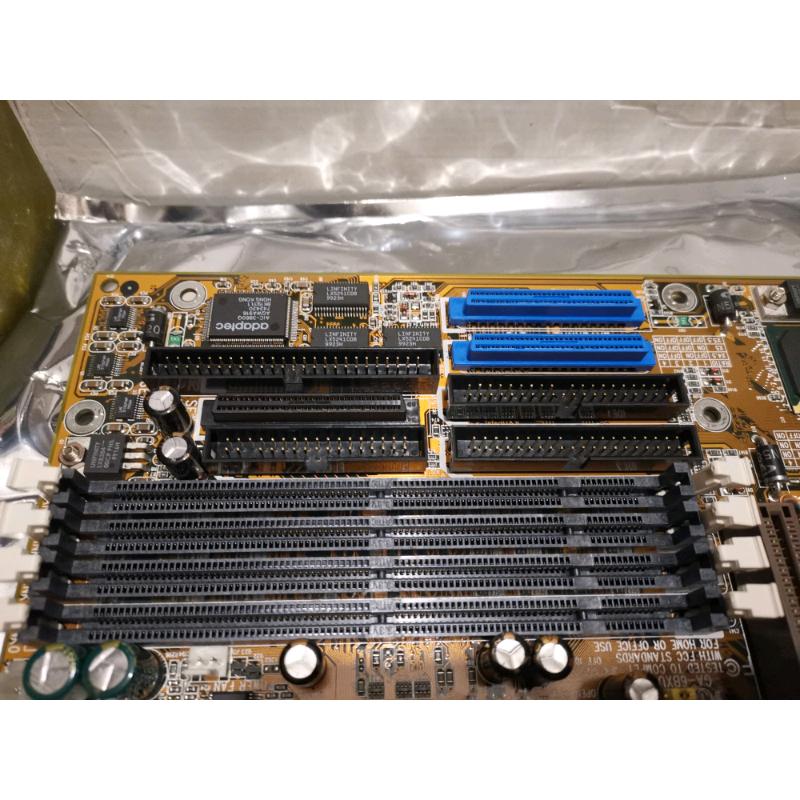

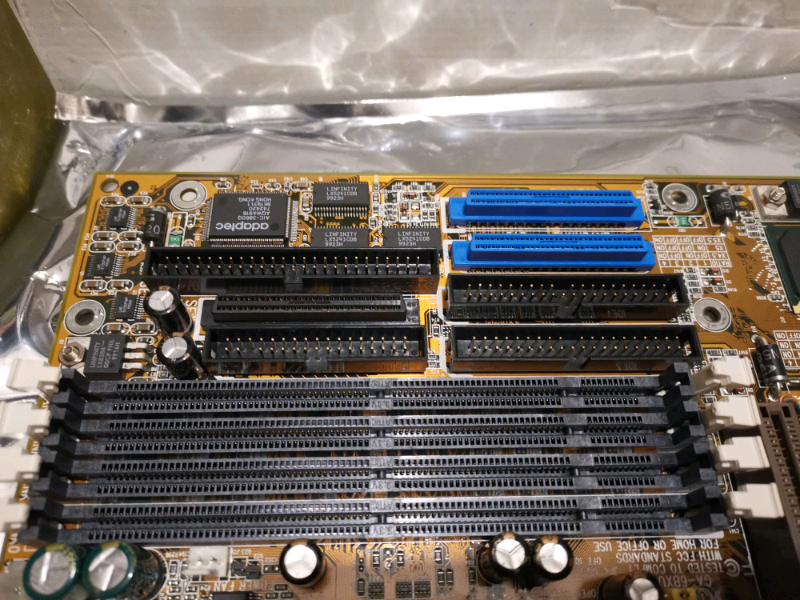

Adaptec 7890 Ultra 2 SCSI
Slot 1
AGP
4 PCI
3 ISA
4 Dimm slots
CPU
Intel Pentium II / III Processor 233 to 550 MHz
Slot 1 Socket for future Processor support
66/100 MHz & Auto Selection Main Clock
Auto Detect CPU Voltage
Clock multiplier 3.0/3.5 ...... / 5.5
Chipset
Intel 82440 BX AGPset
Winbond 83977 I/Oset (1Mb/S)
Adaptec 7890 Ultra 2 SCSI
Winbond 83782 Health Chip
Memory
CPU Built-in 256KB/512KB L2 cache
4 x 100MHz 168-pin 3.3v DIMM sockets support
Supports 8/16/32/64/128/256 MB DIMM Module
Supports EDO RAM, SDRAM (Support ECC, 72 bit)
Supports 8MB to 1GB DRAM Size
Expansion Slots
4 x PCI 32-bit slots, PCI 2.2 compliant

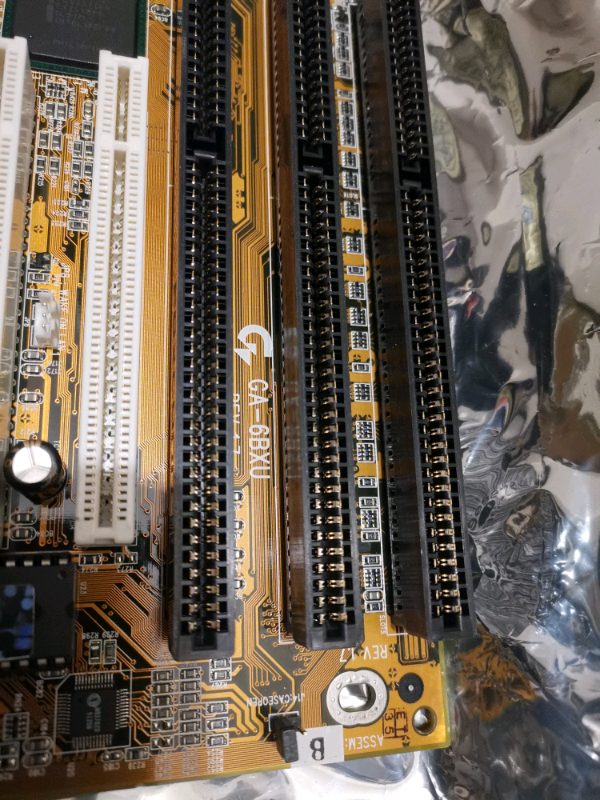

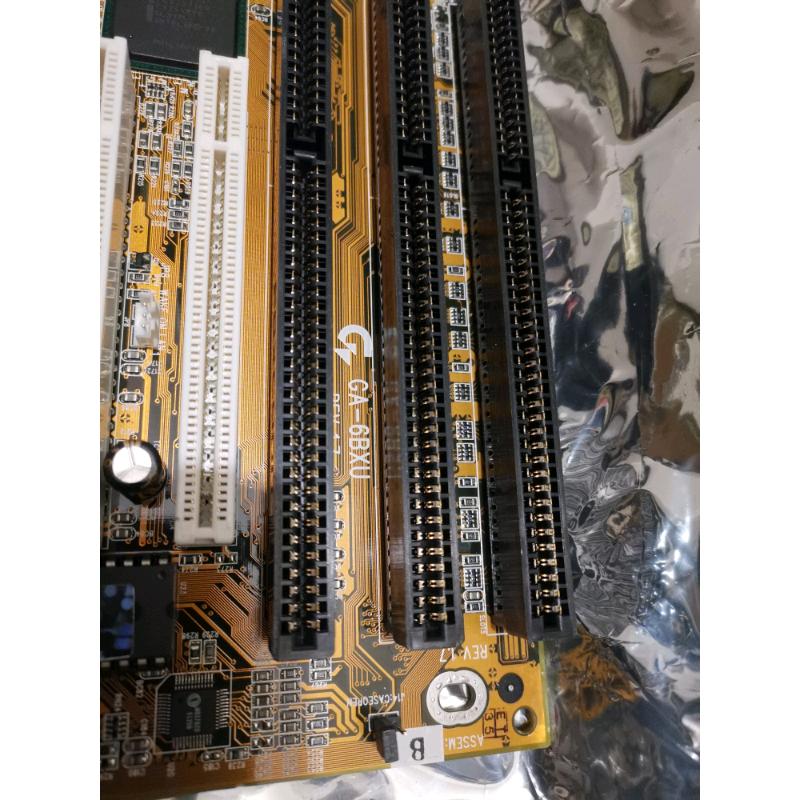

3 x ISA 16-bit slots
1x AGP (1x & 2x Mode,66/133MHz) slot POWER ATX Power connector
Power On by Keyboard, PS/2 Mouse, LAN, RTC Alarm,Modem Ring & Switch
Power Off by WindowsR 98 Shut down & Soft-Power Switch
AC Recovery On/Off Control
Stop CPU Fan during entering suspend mode
3 Level ACPI LED Support
I/O Controller
1x External & 1x Internal Ultra 2 SCSI (80Mbytes)
1x Ultra Wide SCSI (40Mbytes) ports & 1x Ultra SCSI (20Mbytes) ports
1x floppy port (360KB-2.88MB)
2x serial ports (16550 high-speed)
1x parallel port (EPP/ECP)
PS/2 Keyboard
PS/2 Mouse
2x USB
H/W Monitoring
Flexible Temperature Sensor Under Processor Heatsink
Auto Speed Down and Speaker Alarm when CPU overheat(OS independent & Driverless)
System Health Status Detect & Report by BIOS,LDCMR & SIV.
Hardware Detects +/- 5v, +/-12v, CPU & CMOS battery Voltage Status
BIOS
2 Mbit (256KB) FLASH RAM
Award BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance, Green,PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
Auto-detect & Report System Health Status
Form Factor
ATX , 4 layer PCB (30.5*21.0cm)
Driver
Intel LDCMR, SIV utility
Ultr DMA/33 Bus Master IDE Driver (Triones & Intel)
Intel PIIX4e Patch Utility for Windows 95

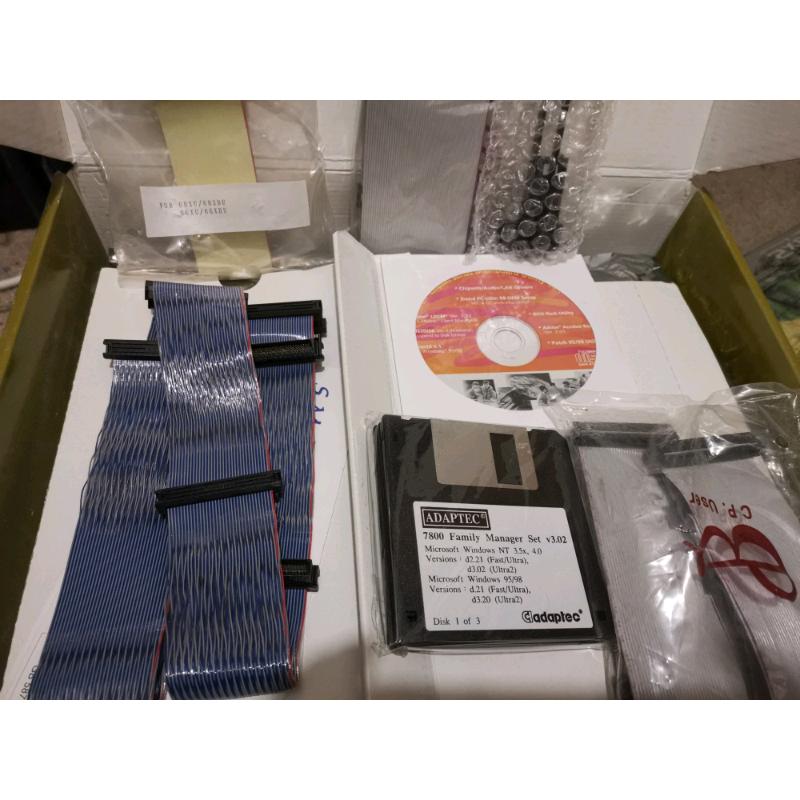

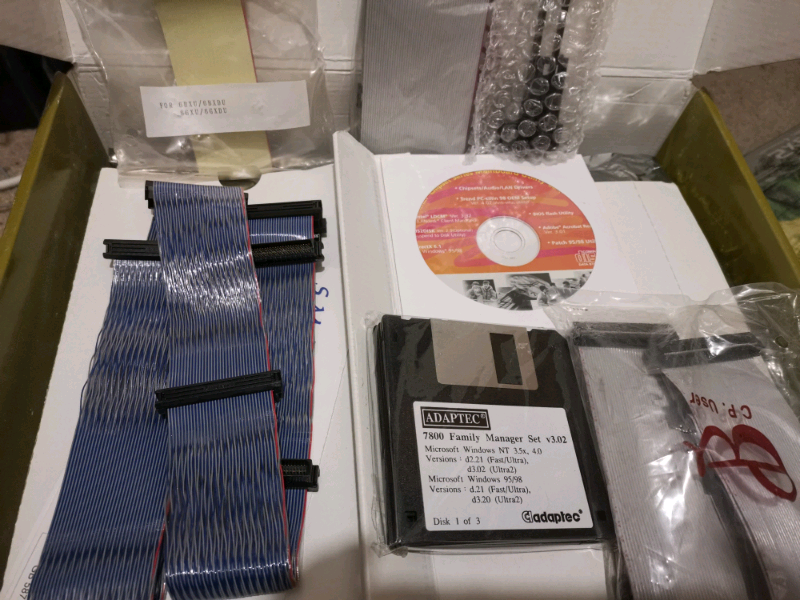

Adaptec SCSI Utility
Other Features
Supports Wake On LAN Header (WOL)
Supports Creative SB-LINK connector for Sound Blaster AWE64D PCI Sound
Supports 3 Fan Detection Connectors
Poly fuse for keyboard overcurrent protection
